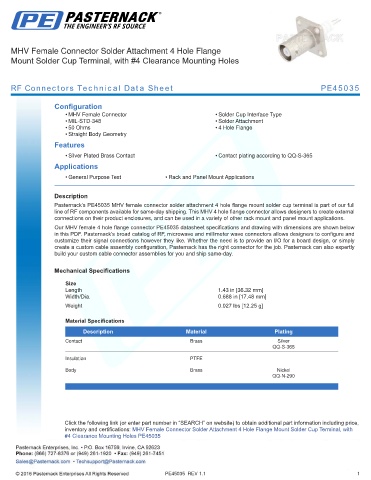

MHV Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, with #4 Clearance Mounting Holes

RF Connectors Technical Data Sheet PE45035

Configuration
• MHV Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Silver Plated Brass Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE45035 MHV female connector solder attachment 4 hole flange mount solder cup terminal is part of our full
line of RF components available for same-day shipping. This MHV 4 hole flange connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our MHV female 4 hole flange connector PE45035 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.027 lbs [12.25 g]
.
Material Specifications

Description Material Plating
Contact Brass Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, with
#4 Clearance Mounting Holes PE45035

PE45035 REV 1.1 1
