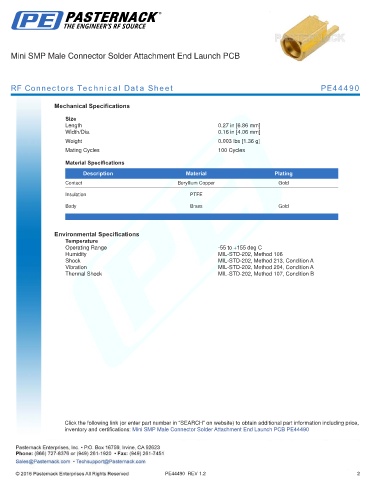

Mini SMP Male Connector Solder Attachment End Launch PCB
RF Connectors Technical Data Sheet PE44490
Mechanical Specifications
Size
Length 0.27 in [6.86 mm]
Width/Dia. 0.16 in [4.06 mm]
.
Weight 0.003 lbs [1.36 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE
Body Brass Gold
.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition A
Vibration MIL-STD-202, Method 204, Condition A
Thermal Shock MIL-STD-202, Method 107, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Connector Solder Attachment End Launch PCB PE44490
PE44490 REV 1.2 2
