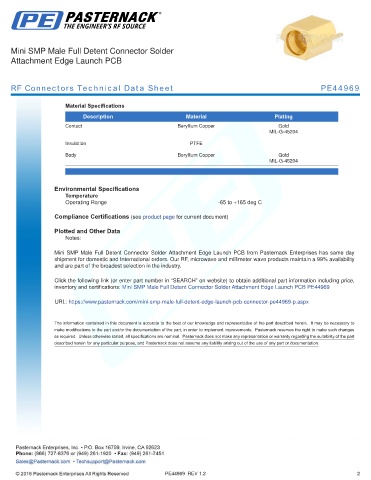

Mini SMP Male Full Detent Connector Solder
Attachment Edge Launch PCB

RF Connectors Technical Data Sheet PE44969

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
MIL-G-45204

Insulation PTFE
Body Beryllium Copper Gold
MIL-G-45204

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Mini SMP Male Full Detent Connector Solder Attachment Edge Launch PCB from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Full Detent Connector Solder Attachment Edge Launch PCB PE44969

URL: https://www.pasternack.com/mini-smp-male-full-detent-edge-launch-pcb-connector-pe44969-p.aspx

PE44969 REV 1.2 2
