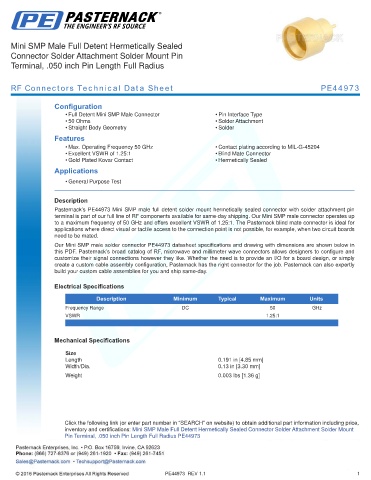

Mini SMP Male Full Detent Hermetically Sealed
Connector Solder Attachment Solder Mount Pin
Terminal, .050 inch Pin Length Full Radius

RF Connectors Technical Data Sheet PE44973

Configuration
• Full Detent Mini SMP Male Connector • Pin Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Solder
Features
• Max. Operating Frequency 50 GHz • Contact plating according to MIL-G-45204
• Excellent VSWR of 1.25:1 • Blind Mate Connector
• Gold Plated Kovar Contact • Hermetically Sealed
Applications

• General Purpose Test
.
Description
Pasternack’s PE44973 Mini SMP male full detent solder mount hermetically sealed connector with solder attachment pin
terminal is part of our full line of RF components available for same-day shipping. Our Mini SMP male connector operates up
to a maximum frequency of 50 GHz and offers excellent VSWR of 1.25:1. The Pasternack blind mate connector is ideal for
applications where direct visual or tactile access to the connection point is not possible, for example, when two circuit boards
need to be mated.
Our Mini SMP male solder connector PE44973 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 50 GHz
VSWR 1.25:1
.

Mechanical Specifications

Size
Length 0.191 in [4.85 mm]
Width/Dia. 0.13 in [3.30 mm]
.
Weight 0.003 lbs [1.36 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Full Detent Hermetically Sealed Connector Solder Attachment Solder Mount
Pin Terminal, .050 inch Pin Length Full Radius PE44973
