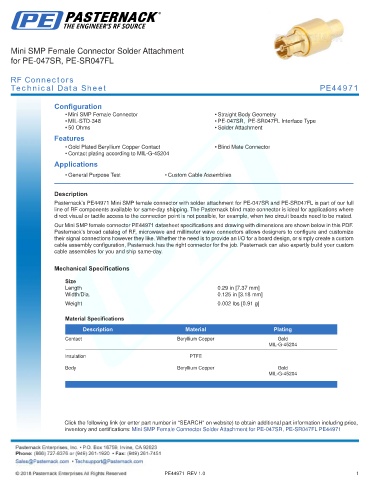

Mini SMP Female Connector Solder Attachment
for PE-047SR, PE-SR047FL

RF Connectors
Technical Data Sheet PE44971

Configuration
• Mini SMP Female Connector • Straight Body Geometry
• MIL-STD-348 • PE-047SR, PE-SR047FL Interface Type
• 50 Ohms • Solder Attachment
Features
• Gold Plated Beryllium Copper Contact • Blind Mate Connector
• Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44971 Mini SMP female connector with solder attachment for PE-047SR and PE-SR047FL is part of our full
line of RF components available for same-day shipping. The Pasternack blind mate connector is ideal for applications where
direct visual or tactile access to the connection point is not possible, for example, when two circuit boards need to be mated.
Our Mini SMP female connector PE44971 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.29 in [7.37 mm]
Width/Dia. 0.125 in [3.18 mm]
.
Weight 0.002 lbs [0.91 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
MIL-G-45204

Insulation PTFE
Body Beryllium Copper Gold
MIL-G-45204

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female Connector Solder Attachment for PE-047SR, PE-SR047FL PE44971

PE44971 REV 1.0 1
