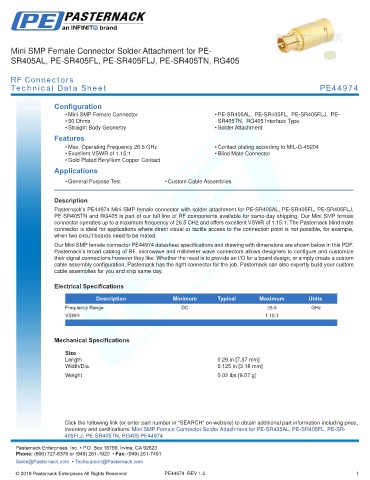

Mini SMP Female Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

RF Connectors
Technical Data Sheet PE44974

Configuration
• Mini SMP Female Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• 50 Ohms SR405TN, RG405 Interface Type
• Straight Body Geometry • Solder Attachment
Features
• Max. Operating Frequency 26.5 GHz • Contact plating according to MIL-G-45204
• Excellent VSWR of 1.15:1 • Blind Mate Connector
• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44974 Mini SMP female connector with solder attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ,
PE-SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our Mini SMP female
connector operates up to a maximum frequency of 26.5 GHz and offers excellent VSWR of 1.15:1. The Pasternack blind mate
connector is ideal for applications where direct visual or tactile access to the connection point is not possible, for example,
when two circuit boards need to be mated.
Our Mini SMP female connector PE44974 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.15:1
.

Mechanical Specifications

Size
Length 0.29 in [7.37 mm]
Width/Dia. 0.125 in [3.18 mm]
.
Weight 0.02 lbs [9.07 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR- -
405FLJ, PE-SR405TN, RG405 PE44974 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44974 REV 1.2 1
