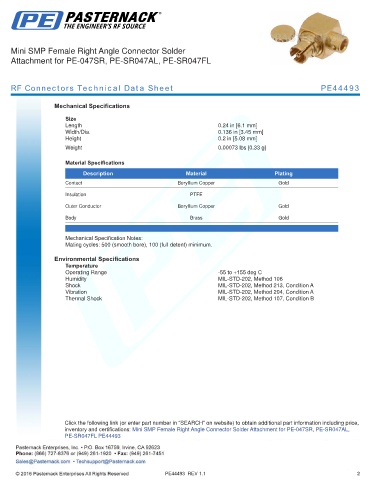

Mini SMP Female Right Angle Connector Solder
Attachment for PE-047SR, PE-SR047AL, PE-SR047FL

RF Connectors Technical Data Sheet PE44493

Mechanical Specifications

Size
Length 0.24 in [6.1 mm]
Width/Dia. 0.136 in [3.45 mm]
Height 0.2 in [5.08 mm]
.
Weight 0.00073 lbs [0.33 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Outer Conductor Beryllium Copper Gold
Body Brass Gold
.
Mechanical Specification Notes:
Mating cycles: 500 (smooth bore), 100 (full detent) minimum.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition A
Vibration MIL-STD-202, Method 204, Condition A
Thermal Shock MIL-STD-202, Method 107, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female Right Angle Connector Solder Attachment for PE-047SR, PE-SR047AL,
PE-SR047FL PE44493
