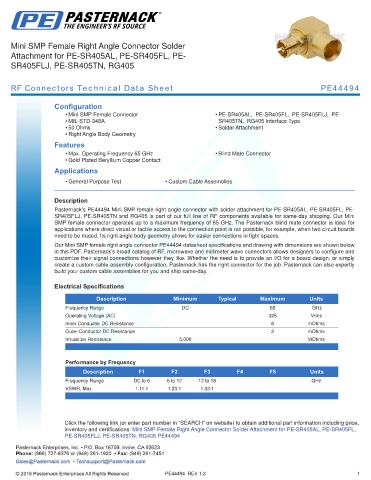

Mini SMP Female Right Angle Connector Solder
Attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN, RG405

RF Connectors Technical Data Sheet PE44494

Configuration
• Mini SMP Female Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• MIL-STD-348A SR405TN, RG405 Interface Type
• 50 Ohms • Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 65 GHz • Blind Mate Connector
• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44494 Mini SMP female right angle connector with solder attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our Mini
SMP female connector operates up to a maximum frequency of 65 GHz. The Pasternack blind mate connector is ideal for
applications where direct visual or tactile access to the connection point is not possible, for example, when two circuit boards
need to be mated. Its right angle body geometry allows for easier connections in tight spaces.
Our Mini SMP female right angle connector PE44494 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 65 GHz
Operating Voltage (AC) 325 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 6 6 to 12 12 to 18 GHz
VSWR, Max 1.11:1 1.23:1 1.33:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, PE-SR405TN, RG405 PE44494

PE44494 REV 1.2 1
