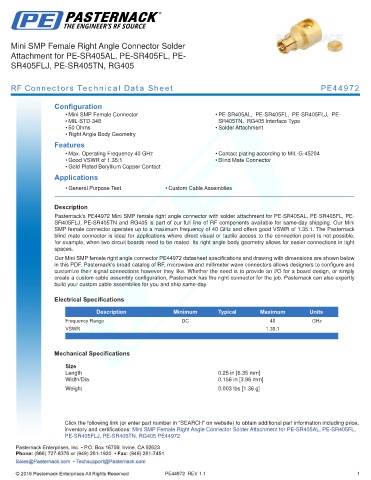

Mini SMP Female Right Angle Connector Solder
Attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN, RG405

RF Connectors Technical Data Sheet PE44972

Configuration
• Mini SMP Female Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• MIL-STD-348 SR405TN, RG405 Interface Type
• 50 Ohms • Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 40 GHz • Contact plating according to MIL-G-45204
• Good VSWR of 1.35:1 • Blind Mate Connector
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44972 Mini SMP female right angle connector with solder attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our Mini
SMP female connector operates up to a maximum frequency of 40 GHz and offers good VSWR of 1.35:1. The Pasternack
blind mate connector is ideal for applications where direct visual or tactile access to the connection point is not possible,
for example, when two circuit boards need to be mated. Its right angle body geometry allows for easier connections in tight
spaces.
Our Mini SMP female right angle connector PE44972 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.35:1
.

Mechanical Specifications

Size
Length 0.25 in [6.35 mm]
Width/Dia. 0.156 in [3.96 mm]
.
Weight 0.003 lbs [1.36 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL,
PE-SR405FLJ, PE-SR405TN, RG405 PE44972

PE44972 REV 1.1 1
