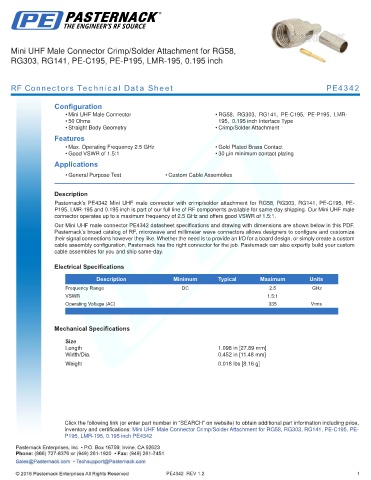

Mini UHF Male Connector Crimp/Solder Attachment for RG58,
RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE4342

Configuration
• Mini UHF Male Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• 50 Ohms 195, 0.195 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 2.5 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4342 Mini UHF male connector with crimp/solder attachment for RG58, RG303, RG141, PE-C195, PE-
P195, LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. Our Mini UHF male
connector operates up to a maximum frequency of 2.5 GHz and offers good VSWR of 1.5:1.
Our Mini UHF male connector PE4342 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2.5 GHz
VSWR 1.5:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 1.098 in [27.89 mm]
Width/Dia. 0.452 in [11.48 mm]
.
Weight 0.018 lbs [8.16 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Male Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-
P195, LMR-195, 0.195 inch PE4342
