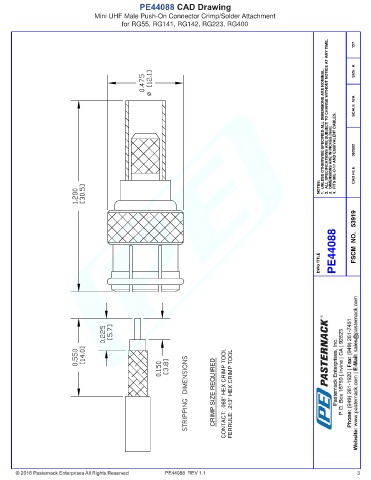

PE44088 CAD Drawing
Mini UHF Male Push-On Connector Crimp/Solder Attachment
for RG55, RG141, RG142, RG223, RG400

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062502

NOTES: CAD FILE

PE44088 FSCM NO. 53919

DWG TITLE

CRIMP SIZE REQUIRED CONTACT: .068" HEX CRIMP TOOL FERRULE: .213" HEX CRIMP TOOL

PE44088 REV 1.1 3
