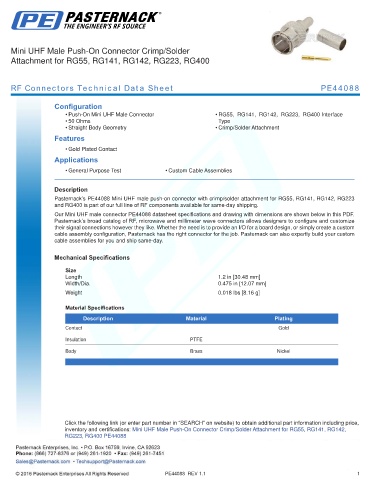

Mini UHF Male Push-On Connector Crimp/Solder
Attachment for RG55, RG141, RG142, RG223, RG400

RF Connectors Technical Data Sheet PE44088

Configuration
• Push-On Mini UHF Male Connector • RG55, RG141, RG142, RG223, RG400 Interface
• 50 Ohms Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44088 Mini UHF male push-on connector with crimp/solder attachment for RG55, RG141, RG142, RG223
and RG400 is part of our full line of RF components available for same-day shipping.
Our Mini UHF male connector PE44088 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.2 in [30.48 mm]
Width/Dia. 0.475 in [12.07 mm]
.
Weight 0.018 lbs [8.16 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Male Push-On Connector Crimp/Solder Attachment for RG55, RG141, RG142,
RG223, RG400 PE44088

PE44088 REV 1.1 1
