MMCX Plug Connector Crimp/Solder
Attachment For RG188-DS, RG316-DS

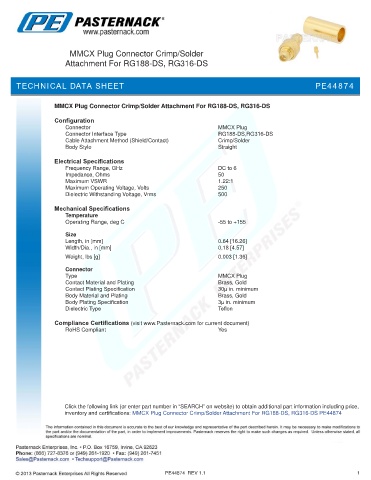

TECHNICAL DATA SHEET PE44874

MMCX Plug Connector Crimp/Solder Attachment For RG188-DS, RG316-DS

Configuration
Connector MMCX Plug
Connector Interface Type RG188-DS,RG316-DS
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50
Maximum VSWR 1.22:1
Maximum Operating Voltage, Volts 250
Dielectric Withstanding Voltage, Vrms 500

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +155

Size
Length, in [mm] 0.64 [16.26]
Width/Dia., in [mm] 0.18 [4.57]
.
Weight, lbs [g] 0.003 [1.36]
Connector
Type MMCX Plug
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Gold
Body Plating Specification 3µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Connector Crimp/Solder Attachment For RG188-DS, RG316-DS PE44874

PE44874 REV 1.1 1
