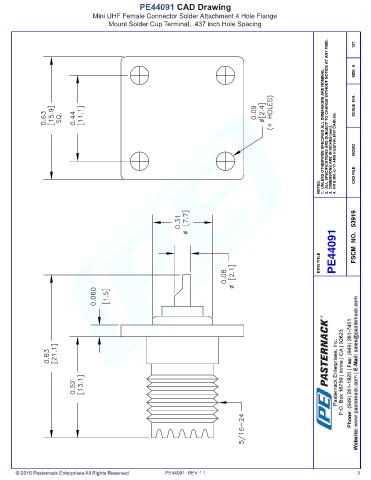

PE44091 CAD Drawing
Mini UHF Female Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .437 inch Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062502

NOTES: CAD FILE

PE44091 FSCM NO. 53919

DWG TITLE

PE44091 REV 1.1 3
