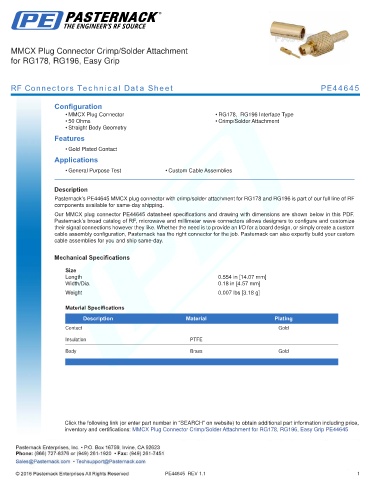

MMCX Plug Connector Crimp/Solder Attachment
for RG178, RG196, Easy Grip

RF Connectors Technical Data Sheet PE44645

Configuration
• MMCX Plug Connector • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44645 MMCX plug connector with crimp/solder attachment for RG178 and RG196 is part of our full line of RF
components available for same-day shipping.
Our MMCX plug connector PE44645 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.554 in [14.07 mm]
Width/Dia. 0.18 in [4.57 mm]
.
Weight 0.007 lbs [3.18 g]
.
Material Specifications
Description Material Plating
Contact Gold
Insulation PTFE

Body Brass Gold
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Connector Crimp/Solder Attachment for RG178, RG196, Easy Grip PE44645

PE44645 REV 1.1 1
