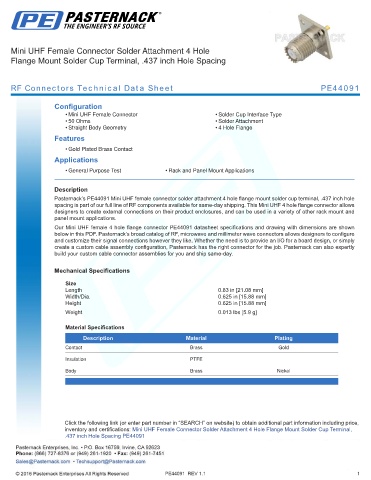

Mini UHF Female Connector Solder Attachment 4 Hole
Flange Mount Solder Cup Terminal, .437 inch Hole Spacing

RF Connectors Technical Data Sheet PE44091

Configuration
• Mini UHF Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44091 Mini UHF female connector solder attachment 4 hole flange mount solder cup terminal, .437 inch hole
spacing is part of our full line of RF components available for same-day shipping. This Mini UHF 4 hole flange connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our Mini UHF female 4 hole flange connector PE44091 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.83 in [21.08 mm]
Width/Dia. 0.625 in [15.88 mm]
Height 0.625 in [15.88 mm]
.
Weight 0.013 lbs [5.9 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal,
.437 inch Hole Spacing PE44091

PE44091 REV 1.1 1
