Mini UHF Female Bulkhead Connector Solder Attachment
Solder Cup Terminal, .350 inch D Hole, Rear Mount

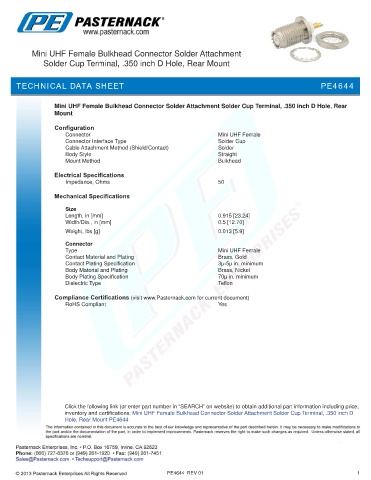

TECHNICAL DATA SHEET PE4644

Mini UHF Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D Hole, Rear
Mount

Configuration
Connector Mini UHF Female
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 0.915 [23.24]
Width/Dia., in [mm] 0.5 [12.70]
.
Weight, lbs [g] 0.013 [5.9]

Connector
Type Mini UHF Female
Contact Material and Plating Brass, Gold
Contact Plating Specification 3µ-5µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 70µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Female Bulkhead Connector Solder Attachment Solder Cup Terminal, .350 inch D
Hole, Rear Mount PE4644
