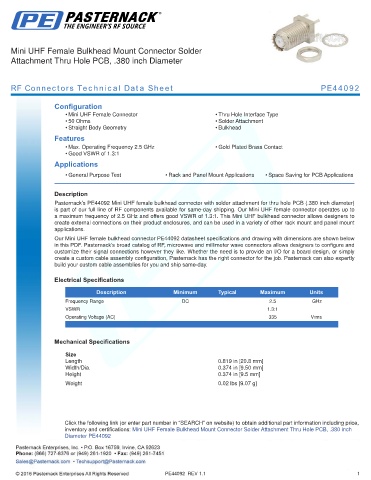

Mini UHF Female Bulkhead Mount Connector Solder
Attachment Thru Hole PCB, .380 inch Diameter

RF Connectors Technical Data Sheet PE44092

Configuration
• Mini UHF Female Connector • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Max. Operating Frequency 2.5 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1
Applications
• General Purpose Test • Rack and Panel Mount Applications • Space Saving for PCB Applications
.
Description
Pasternack’s PE44092 Mini UHF female bulkhead connector with solder attachment for thru hole PCB (.380 inch diameter)
is part of our full line of RF components available for same-day shipping. Our Mini UHF female connector operates up to
a maximum frequency of 2.5 GHz and offers good VSWR of 1.3:1. This Mini UHF bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our Mini UHF female bulkhead connector PE44092 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2.5 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications
Size
Length 0.819 in [20.8 mm]
Width/Dia. 0.374 in [9.50 mm]
Height 0.374 in [9.5 mm]
.
Weight 0.02 lbs [9.07 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Female Bulkhead Mount Connector Solder Attachment Thru Hole PCB, .380 inch
Diameter PE44092

PE44092 REV 1.1 1
