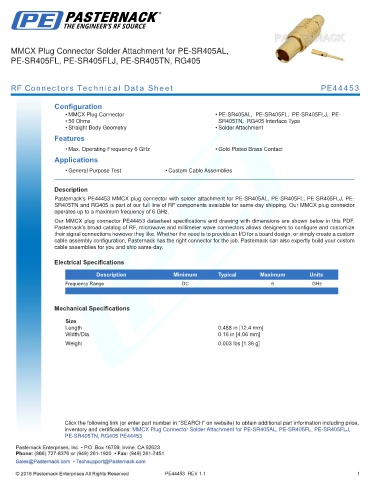

MMCX Plug Connector Solder Attachment for PE-SR405AL,
PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

RF Connectors Technical Data Sheet PE44453

Configuration
• MMCX Plug Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• 50 Ohms SR405TN, RG405 Interface Type
• Straight Body Geometry • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44453 MMCX plug connector with solder attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our MMCX plug connector
operates up to a maximum frequency of 6 GHz.
Our MMCX plug connector PE44453 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
.

Mechanical Specifications

Size
Length 0.488 in [12.4 mm]
Width/Dia. 0.16 in [4.06 mm]
.
Weight 0.003 lbs [1.36 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ,
PE-SR405TN, RG405 PE44453
