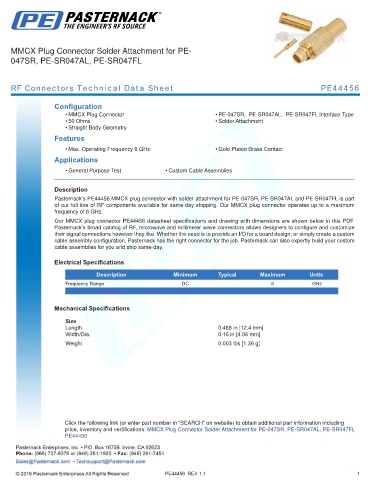

MMCX Plug Connector Solder Attachment for PE-
047SR, PE-SR047AL, PE-SR047FL

RF Connectors Technical Data Sheet PE44456

Configuration
• MMCX Plug Connector • PE-047SR, PE-SR047AL, PE-SR047FL Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44456 MMCX plug connector with solder attachment for PE-047SR, PE-SR047AL and PE-SR047FL is part
of our full line of RF components available for same-day shipping. Our MMCX plug connector operates up to a maximum
frequency of 6 GHz.
Our MMCX plug connector PE44456 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
.

Mechanical Specifications

Size
Length 0.488 in [12.4 mm]
Width/Dia. 0.16 in [4.06 mm]
.
Weight 0.003 lbs [1.36 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MMCX Plug Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL
PE44456

PE44456 REV 1.1 1
