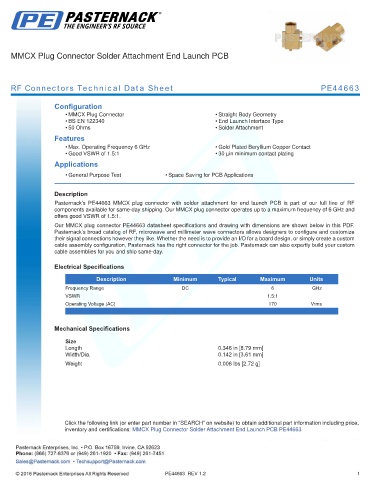

MMCX Plug Connector Solder Attachment End Launch PCB

RF Connectors Technical Data Sheet PE44663

Configuration
• MMCX Plug Connector • Straight Body Geometry
• BS EN 122340 • End Launch Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44663 MMCX plug connector with solder attachment for end launch PCB is part of our full line of RF
components available for same-day shipping. Our MMCX plug connector operates up to a maximum frequency of 6 GHz and
offers good VSWR of 1.5:1.
Our MMCX plug connector PE44663 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.5:1
Operating Voltage (AC) 170 Vrms
.

Mechanical Specifications

Size
Length 0.346 in [8.79 mm]
Width/Dia. 0.142 in [3.61 mm]
.
Weight 0.006 lbs [2.72 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Connector Solder Attachment End Launch PCB PE44663

PE44663 REV 1.2 1
