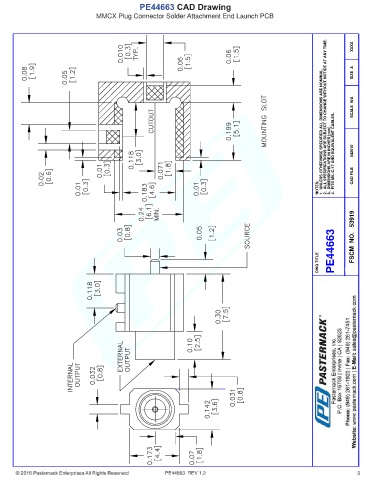

PE44663 CAD Drawing
MMCX Plug Connector Solder Attachment End Launch PCB
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042010
NOTES: CAD FILE
PE44663 FSCM NO. 53919
DWG TITLE
PE44663 REV 1.2 3
