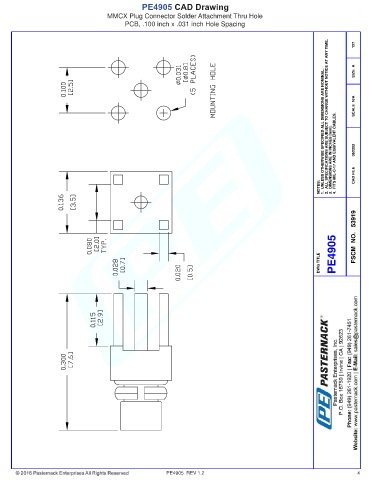

PE4905 CAD Drawing
MMCX Plug Connector Solder Attachment Thru Hole
PCB, .100 inch x .031 inch Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062303

NOTES: CAD FILE

DWG TITLE PE4905 FSCM NO. 53919

PE4905 REV 1.2 4
