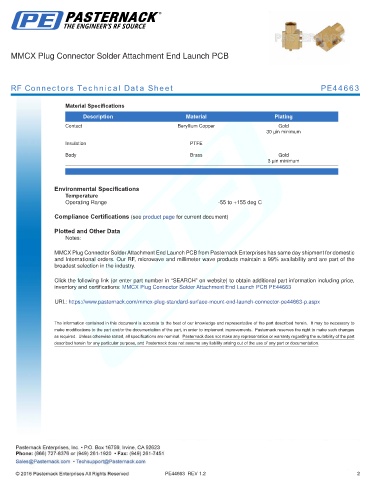

MMCX Plug Connector Solder Attachment End Launch PCB

RF Connectors Technical Data Sheet PE44663

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
30 µin minimum

Insulation PTFE
Body Brass Gold
3 µin minimum

.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MMCX Plug Connector Solder Attachment End Launch PCB from Pasternack Enterprises has same day shipment for domestic
and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the
broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Connector Solder Attachment End Launch PCB PE44663

URL: https://www.pasternack.com/mmcx-plug-standard-surface-mount-end-launch-connector-pe44663-p.aspx

PE44663 REV 1.2 2
