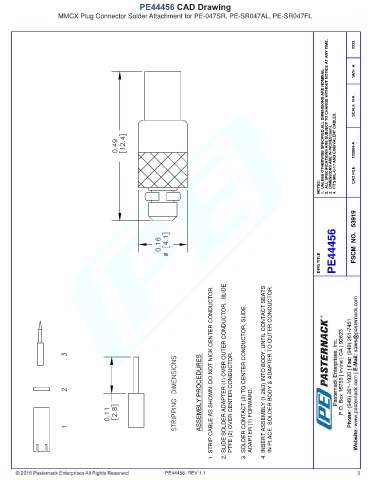

PE44456 CAD Drawing
MMCX Plug Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 120804-A

NOTES: CAD FILE

PE44456 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. DO NOT NICK CENTER CONDUCTOR. 2. SLIDE SOLDER ADAPTER (1) OVER OUTER CONDUCTOR. SLIDE PTFE (2) OVER CENTER CONDUCTOR. 3. SOLDER CONTACT (3) TO CENTER CONDUCTOR. SLIDE ADAPTER (1) FORWARD. 4. INSERT ASSEMBLY (1,2&3) INTO BODY, UNTIL CONTACT SEATS IN PLACE. SOLDER BODY & ADAPTER TO OUTER CONDUCTOR.

PE44456 REV 1.1 3
