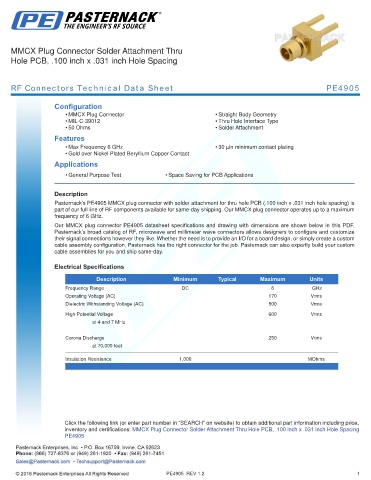

MMCX Plug Connector Solder Attachment Thru
Hole PCB, .100 inch x .031 inch Hole Spacing

RF Connectors Technical Data Sheet PE4905

Configuration
• MMCX Plug Connector • Straight Body Geometry
• MIL-C-39012 • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
Features
• Max Frequency 6 GHz • 30 µin minimum contact plating
• Gold over Nickel Plated Beryllium Copper Contact
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE4905 MMCX plug connector with solder attachment for thru hole PCB (.100 inch x .031 inch hole spacing) is
part of our full line of RF components available for same-day shipping. Our MMCX plug connector operates up to a maximum
frequency of 6 GHz.
Our MMCX plug connector PE4905 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 170 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
High Potential Voltage 600 Vrms
at 4 and 7 MHz

Corona Discharge 250 Vrms
at 70,000 feet
Insulation Resistance 1,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch Hole Spacing
PE4905
