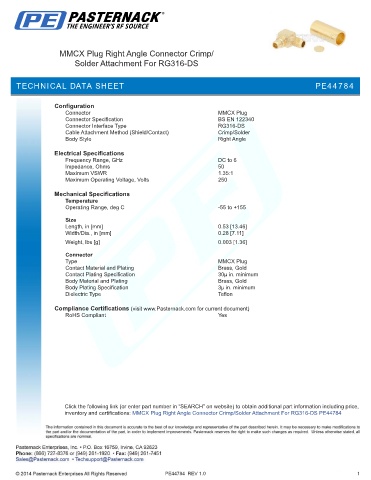

MMCX Plug Right Angle Connector Crimp/
Solder Attachment For RG316-DS

TECHNICAL DATA SHEET PE44784

Configuration
Connector MMCX Plug
Connector Specification BS EN 122340
Connector Interface Type RG316-DS
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle

Electrical Specifications
Frequency Range, GHz DC to 6
Impedance, Ohms 50
Maximum VSWR 1.35:1
Maximum Operating Voltage, Volts 250

Mechanical Specifications
Temperature
Operating Range, deg C -55 to +155

Size
Length, in [mm] 0.53 [13.46]
Width/Dia., in [mm] 0.28 [7.11]
.
Weight, lbs [g] 0.003 [1.36]

Connector
Type MMCX Plug
Contact Material and Plating Brass, Gold
Contact Plating Specification 30µ in. minimum
Body Material and Plating Brass, Gold
Body Plating Specification 3µ in. minimum
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Right Angle Connector Crimp/Solder Attachment For RG316-DS PE44784

PE44784 REV 1.0 1
