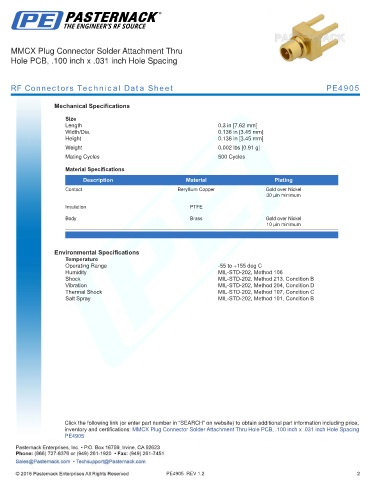

MMCX Plug Connector Solder Attachment Thru
Hole PCB, .100 inch x .031 inch Hole Spacing

RF Connectors Technical Data Sheet PE4905

Mechanical Specifications

Size
Length 0.3 in [7.62 mm]
Width/Dia. 0.136 in [3.45 mm]
Height 0.136 in [3.45 mm]
.
Weight 0.002 lbs [0.91 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
30 µin minimum
Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition C
Salt Spray MIL-STD-202, Method 101, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Plug Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch Hole Spacing
PE4905

PE4905 REV 1.2 2
