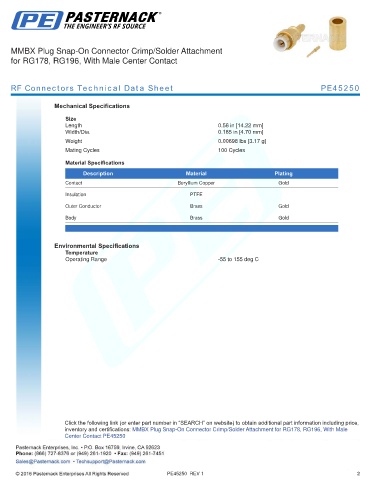

MMBX Plug Snap-On Connector Crimp/Solder Attachment
for RG178, RG196, With Male Center Contact

RF Connectors Technical Data Sheet PE45250

Mechanical Specifications

Size
Length 0.56 in [14.22 mm]
Width/Dia. 0.185 in [4.70 mm]
.
Weight 0.00698 lbs [3.17 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Outer Conductor Brass Gold
Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -55 to 155 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Snap-On Connector Crimp/Solder Attachment for RG178, RG196, With Male
Center Contact PE45250
