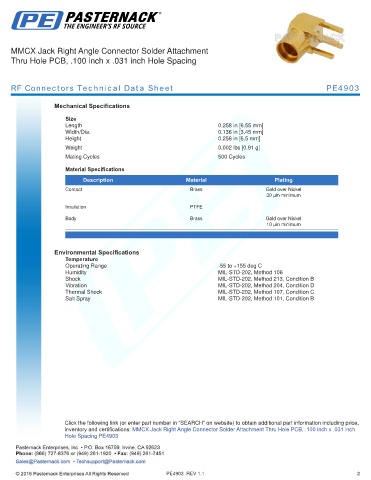

MMCX Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .100 inch x .031 inch Hole Spacing

RF Connectors Technical Data Sheet PE4903

Mechanical Specifications

Size
Length 0.258 in [6.55 mm]
Width/Dia. 0.136 in [3.45 mm]
Height 0.256 in [6.5 mm]
.
Weight 0.002 lbs [0.91 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold over Nickel
30 µin minimum
Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition C
Salt Spray MIL-STD-202, Method 101, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Right Angle Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch
Hole Spacing PE4903

PE4903 REV 1.1 2
