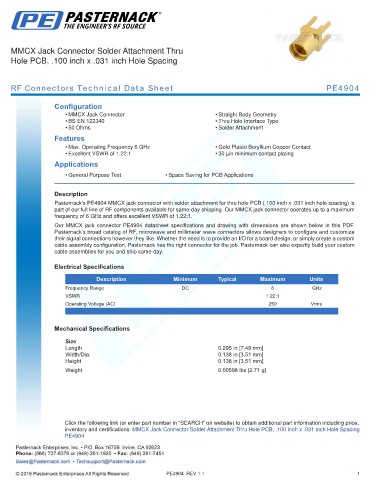

MMCX Jack Connector Solder Attachment Thru
Hole PCB, .100 inch x .031 inch Hole Spacing

RF Connectors Technical Data Sheet PE4904

Configuration
• MMCX Jack Connector • Straight Body Geometry
• BS EN 122340 • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.22:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE4904 MMCX jack connector with solder attachment for thru hole PCB (.100 inch x .031 inch hole spacing) is
part of our full line of RF components available for same-day shipping. Our MMCX jack connector operates up to a maximum
frequency of 6 GHz and offers excellent VSWR of 1.22:1.
Our MMCX jack connector PE4904 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.22:1
Operating Voltage (AC) 250 Vrms
.

Mechanical Specifications

Size
Length 0.295 in [7.49 mm]
Width/Dia. 0.138 in [3.51 mm]
Height 0.138 in [3.51 mm]
.
Weight 0.00598 lbs [2.71 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch Hole Spacing
PE4904

PE4904 REV 1.1 1
