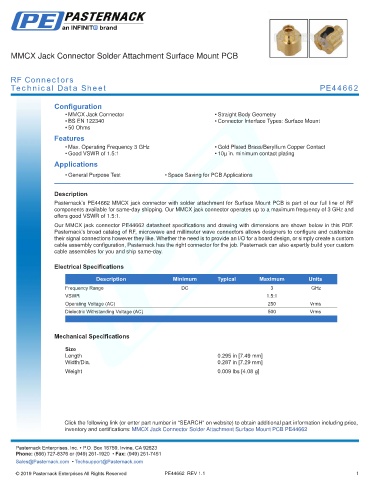

MMCX Jack Connector Solder Attachment Surface Mount PCB

RF Connectors
Technical Data Sheet PE44662

Configuration
• MMCX Jack Connector • Straight Body Geometry
• BS EN 122340 • Connector Interface Types: Surface Mount
• 50 Ohms
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass/Beryllium Copper Contact
• Good VSWR of 1.5:1 • 10µ in. minimum contact plating
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44662 MMCX jack connector with solder attachment for Surface Mount PCB is part of our full line of RF
components available for same-day shipping. Our MMCX jack connector operates up to a maximum frequency of 3 GHz and
offers good VSWR of 1.5:1.
Our MMCX jack connector PE44662 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.5:1
Operating Voltage (AC) 250 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
.

Mechanical Specifications

Size
Length 0.295 in [7.49 mm]
Width/Dia. 0.287 in [7.29 mm]
.
Weight 0.009 lbs [4.08 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Connector Solder Attachment Surface Mount PCB PE44662 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44662 REV 1.1 1
