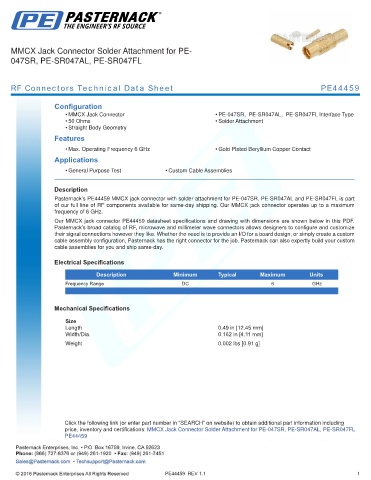

MMCX Jack Connector Solder Attachment for PE-
047SR, PE-SR047AL, PE-SR047FL

RF Connectors Technical Data Sheet PE44459

Configuration
• MMCX Jack Connector • PE-047SR, PE-SR047AL, PE-SR047FL Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44459 MMCX jack connector with solder attachment for PE-047SR, PE-SR047AL and PE-SR047FL is part
of our full line of RF components available for same-day shipping. Our MMCX jack connector operates up to a maximum
frequency of 6 GHz.
Our MMCX jack connector PE44459 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
.

Mechanical Specifications

Size
Length 0.49 in [12.45 mm]
Width/Dia. 0.162 in [4.11 mm]
.
Weight 0.002 lbs [0.91 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MMCX Jack Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL
PE44459

PE44459 REV 1.1 1
