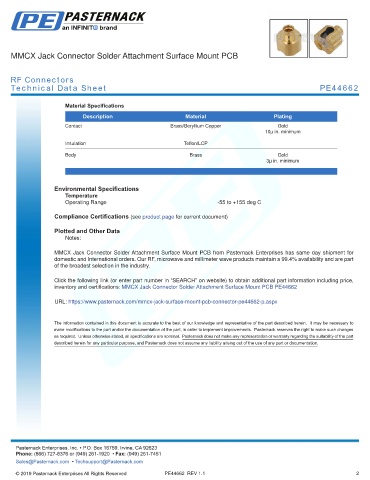

MMCX Jack Connector Solder Attachment Surface Mount PCB

RF Connectors
Technical Data Sheet PE44662

Material Specifications
Description Material Plating
Contact Brass/Beryllium Copper Gold
10µ in. minimum

Insulation Teflon/LCP
Body Brass Gold
3µ in. minimum

.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MMCX Jack Connector Solder Attachment Surface Mount PCB from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4% availability and are part
of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Connector Solder Attachment Surface Mount PCB PE44662

URL: https://www.pasternack.com/mmcx-jack-surface-mount-pcb-connector-pe44662-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44662 REV 1.1 2
