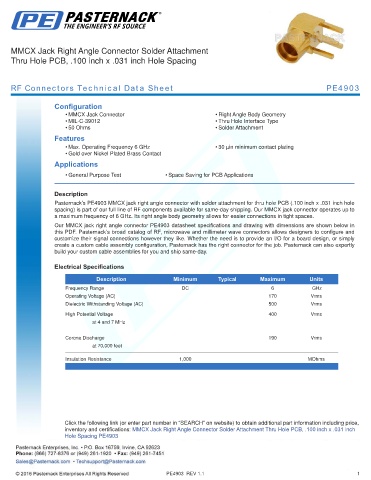

MMCX Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .100 inch x .031 inch Hole Spacing

RF Connectors Technical Data Sheet PE4903

Configuration
• MMCX Jack Connector • Right Angle Body Geometry
• MIL-C-39012 • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Gold over Nickel Plated Brass Contact
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE4903 MMCX jack right angle connector with solder attachment for thru hole PCB (.100 inch x .031 inch hole
spacing) is part of our full line of RF components available for same-day shipping. Our MMCX jack connector operates up to
a maximum frequency of 6 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our MMCX jack right angle connector PE4903 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 170 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
High Potential Voltage 400 Vrms
at 4 and 7 MHz

Corona Discharge 190 Vrms
at 70,000 feet
Insulation Resistance 1,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Right Angle Connector Solder Attachment Thru Hole PCB, .100 inch x .031 inch
Hole Spacing PE4903
