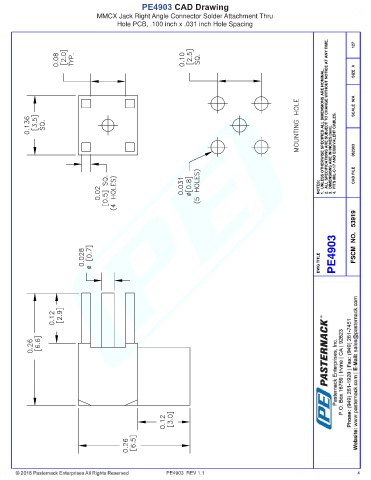

PE4903 CAD Drawing
MMCX Jack Right Angle Connector Solder Attachment Thru
Hole PCB, .100 inch x .031 inch Hole Spacing
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062303
NOTES: CAD FILE
DWG TITLE PE4903 FSCM NO. 53919
PE4903 REV 1.1 4
