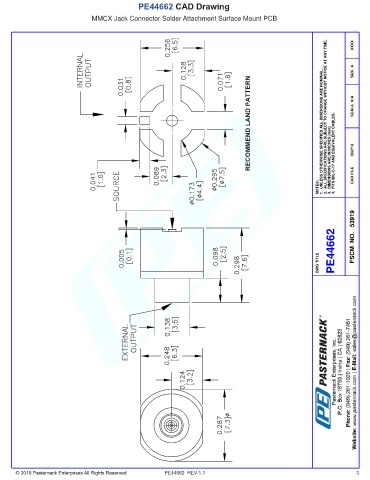

PE44662 CAD Drawing
MMCX Jack Connector Solder Attachment Surface Mount PCB

XXXX

SIZE A

RECOMMEND LAND PATTERN UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. FITS MIL-C-17 AND EQUIVALENT CABLES. SCALE N/A 032713

NOTES: 1. 2. DIMENSIONS ARE IN INCHES [mm]. 3. 4. CAD FILE

PE44662 FSCM NO. 53919

DWG TITLE

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44662 REV 1.1 3
