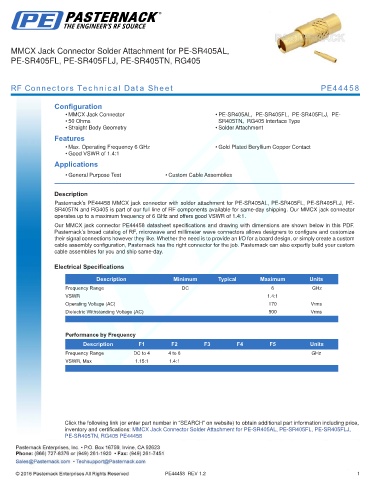

MMCX Jack Connector Solder Attachment for PE-SR405AL,
PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

RF Connectors Technical Data Sheet PE44458

Configuration
• MMCX Jack Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• 50 Ohms SR405TN, RG405 Interface Type
• Straight Body Geometry • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 1.4:1
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44458 MMCX jack connector with solder attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our MMCX jack connector
operates up to a maximum frequency of 6 GHz and offers good VSWR of 1.4:1.
Our MMCX jack connector PE44458 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.4:1
Operating Voltage (AC) 170 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 4 4 to 6 GHz
VSWR, Max 1.15:1 1.4:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ,
PE-SR405TN, RG405 PE44458

PE44458 REV 1.2 1
