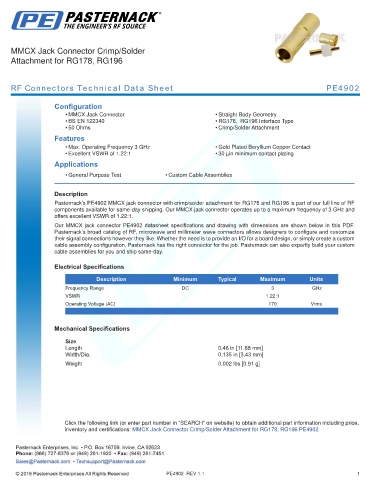

MMCX Jack Connector Crimp/Solder
Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4902

Configuration
• MMCX Jack Connector • Straight Body Geometry
• BS EN 122340 • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 3 GHz • Gold Plated Beryllium Copper Contact
• Excellent VSWR of 1.22:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4902 MMCX jack connector with crimp/solder attachment for RG178 and RG196 is part of our full line of RF
components available for same-day shipping. Our MMCX jack connector operates up to a maximum frequency of 3 GHz and
offers excellent VSWR of 1.22:1.
Our MMCX jack connector PE4902 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.22:1
Operating Voltage (AC) 170 Vrms
.

Mechanical Specifications

Size
Length 0.46 in [11.68 mm]
Width/Dia. 0.135 in [3.43 mm]
.
Weight 0.002 lbs [0.91 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196 PE4902

PE4902 REV 1.1 1
