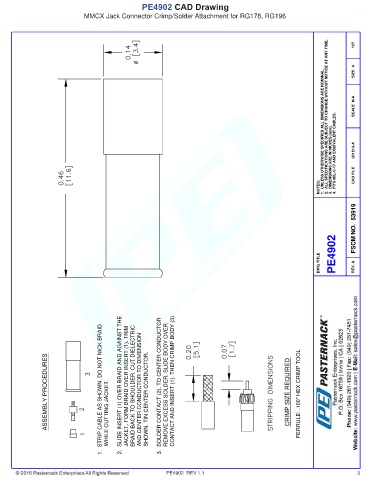

PE4902 CAD Drawing
MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021513-A

NOTES: CAD FILE

FSCM NO. 53919

DWG TITLE PE4902 REV. A

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. DO NOT NICK BRAID WHILE CUTTING JACKET. 2. SLIDE INSERT (1) OVER BRAID AND AGAINST THE JACKET, FORM BRAID OVER INSERT (1). TRIM BRAID BACK TO SHOULDER. CUT DIELECTRIC AND CENTER CONDUCTOR TO DIMENSION SHOWN. TIN CENTER CONDUCTOR. 3. SOLDER CONTACT (2), TO CENTER CONDUCTOR REMOVE EXCESS SOLDER. SLIDE BODY OVER CONTACT AND INSERT (1). THEN CRIMP BODY (3). CRIMP SIZE REQUIRED FERRULE: .100" HEX CRIMP TOOL

PE4902 REV 1.1 3
