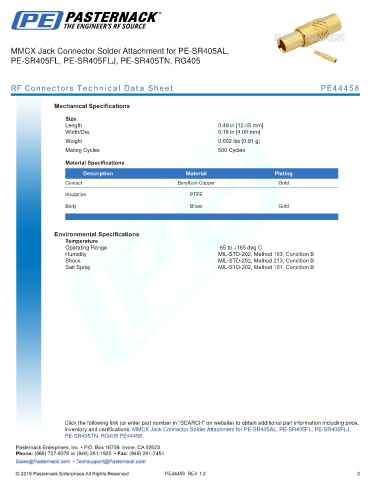

MMCX Jack Connector Solder Attachment for PE-SR405AL,
PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405
RF Connectors Technical Data Sheet PE44458
Mechanical Specifications
Size
Length 0.49 in [12.45 mm]
Width/Dia. 0.16 in [4.06 mm]
.
Weight 0.002 lbs [0.91 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE
Body Brass Gold
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Humidity MIL-STD-202, Method 103, Condition B
Shock MIL-STD-202, Method 213, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ,
PE-SR405TN, RG405 PE44458
