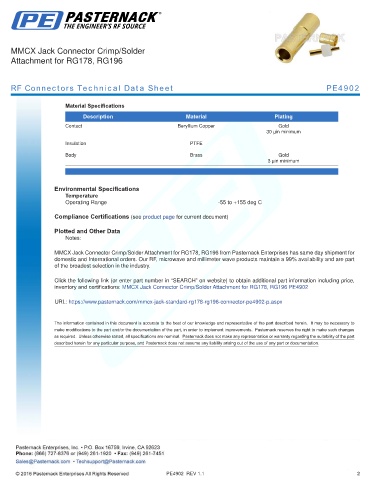

MMCX Jack Connector Crimp/Solder
Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4902

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
30 µin minimum

Insulation PTFE
Body Brass Gold
3 µin minimum

.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196 from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMCX Jack Connector Crimp/Solder Attachment for RG178, RG196 PE4902

URL: https://www.pasternack.com/mmcx-jack-standard-rg178-rg196-connector-pe4902-p.aspx

PE4902 REV 1.1 2
