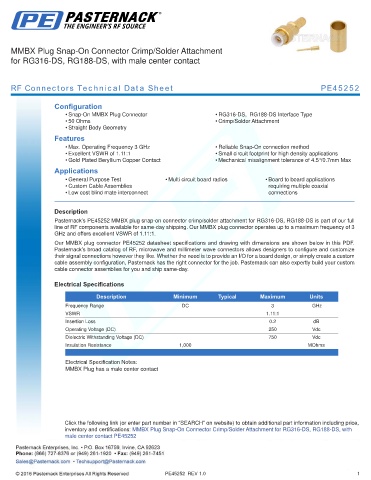

MMBX Plug Snap-On Connector Crimp/Solder Attachment
for RG316-DS, RG188-DS, with male center contact

RF Connectors Technical Data Sheet PE45252

Configuration
• Snap-On MMBX Plug Connector • RG316-DS, RG188-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 3 GHz • Reliable Snap-On connection method
• Excellent VSWR of 1.11:1 • Small circuit footprint for high density applications
• Gold Plated Beryllium Copper Contact • Mechanical misalignment tolerance of 4.5°/0.7mm Max
Applications
• General Purpose Test • Multi circuit board radios • Board to board applications
• Custom Cable Assemblies requiring multiple coaxial
• Low cost blind mate interconnect connections
.
Description
Pasternack’s PE45252 MMBX plug snap-on connector crimp/solder attachment for RG316-DS, RG188-DS is part of our full
line of RF components available for same-day shipping. Our MMBX plug connector operates up to a maximum frequency of 3
GHz and offers excellent VSWR of 1.11:1.
Our MMBX plug connector PE45252 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable connector assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.11:1
Insertion Loss 0.2 dB
Operating Voltage (DC) 250 Vdc
Dielectric Withstanding Voltage (DC) 750 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Plug has a male center contact

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Snap-On Connector Crimp/Solder Attachment for RG316-DS, RG188-DS, with
male center contact PE45252

PE45252 REV 1.0 1
