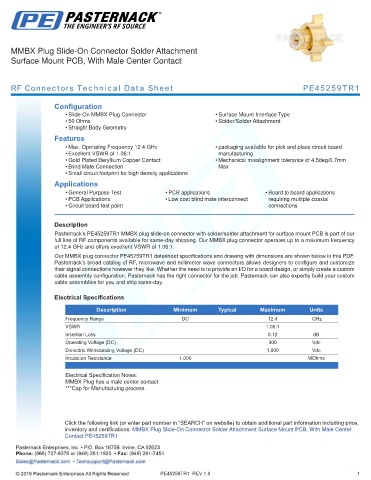

MMBX Plug Slide-On Connector Solder Attachment
Surface Mount PCB, With Male Center Contact

RF Connectors Technical Data Sheet PE45259TR1

Configuration
• Slide-On MMBX Plug Connector • Surface Mount Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 12.4 GHz • packaging available for pick and place circuit board
• Excellent VSWR of 1.06:1 manufacturing
• Gold Plated Beryllium Copper Contact • Mechanical misalignment tolerance of 4.5deg/0.7mm
• Blind Mate Connection Max
• Small circuit footprint for high density applications
Applications
• General Purpose Test • PCB applications • Board to board applications
• PCB Applications • Low cost blind mate interconnect requiring multiple coaxial
• Circuit board test point connections
.
Description
Pasternack’s PE45259TR1 MMBX plug slide-on connector with solder/solder attachment for surface mount PCB is part of our
full line of RF components available for same-day shipping. Our MMBX plug connector operates up to a maximum frequency
of 12.4 GHz and offers excellent VSWR of 1.06:1.
Our MMBX plug connector PE45259TR1 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.06:1
Insertion Loss 0.12 dB
Operating Voltage (DC) 300 Vdc
Dielectric Withstanding Voltage (DC) 1,000 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Plug has a male center contact
***Cap for Manufactuing process

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Slide-On Connector Solder Attachment Surface Mount PCB, With Male Center
Contact PE45259TR1

PE45259TR1 REV 1.0 1
