MMBX Plug Slide-On Connector Solder Attachment Surface Mount
PCB, With Male Center Contact, 1 Reel Contains 750 pieces

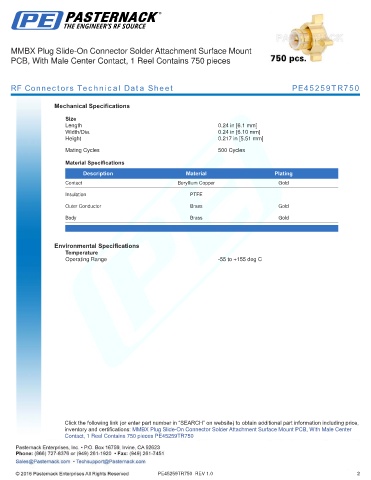

RF Connectors Technical Data Sheet PE45259TR750

Mechanical Specifications

Size
Length 0.24 in [6.1 mm]
Width/Dia. 0.24 in [6.10 mm]
Height 0.217 in [5.51 mm]
.
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Outer Conductor Brass Gold
Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Slide-On Connector Solder Attachment Surface Mount PCB, With Male Center
Contact, 1 Reel Contains 750 pieces PE45259TR750

PE45259TR750 REV 1.0 2
