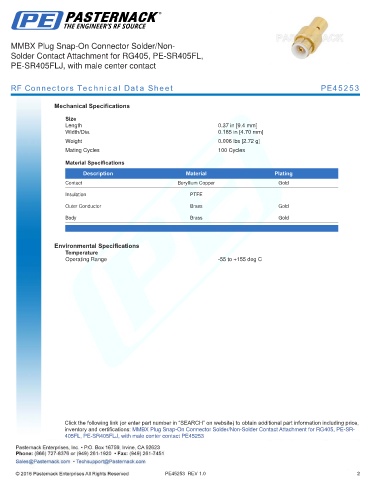

MMBX Plug Snap-On Connector Solder/Non-
Solder Contact Attachment for RG405, PE-SR405FL,
PE-SR405FLJ, with male center contact
RF Connectors Technical Data Sheet PE45253
Mechanical Specifications
Size
Length 0.37 in [9.4 mm]
Width/Dia. 0.185 in [4.70 mm]
.
Weight 0.006 lbs [2.72 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE
Outer Conductor Brass Gold
Body Brass Gold
.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Snap-On Connector Solder/Non-Solder Contact Attachment for RG405, PE-SR-
405FL, PE-SR405FLJ, with male center contact PE45253
PE45253 REV 1.0 2
