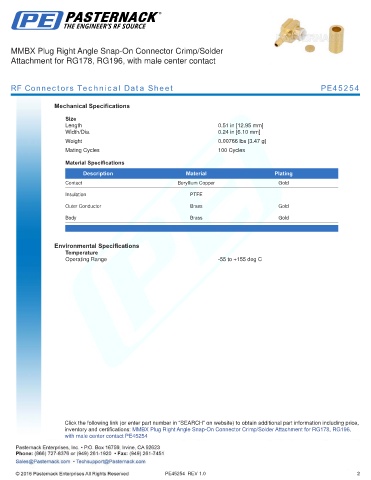

MMBX Plug Right Angle Snap-On Connector Crimp/Solder
Attachment for RG178, RG196, with male center contact

RF Connectors Technical Data Sheet PE45254

Mechanical Specifications

Size
Length 0.51 in [12.95 mm]
Width/Dia. 0.24 in [6.10 mm]
.
Weight 0.00766 lbs [3.47 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Outer Conductor Brass Gold
Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Right Angle Snap-On Connector Crimp/Solder Attachment for RG178, RG196,
with male center contact PE45254
