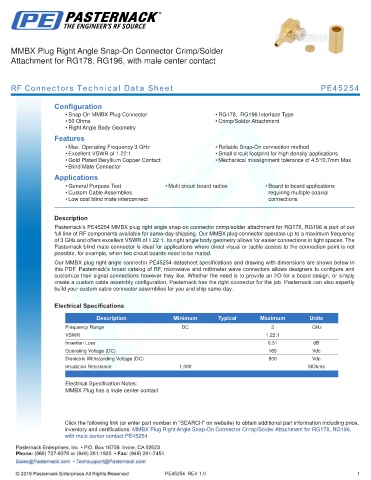

MMBX Plug Right Angle Snap-On Connector Crimp/Solder
Attachment for RG178, RG196, with male center contact

RF Connectors Technical Data Sheet PE45254

Configuration
• Snap-On MMBX Plug Connector • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 3 GHz • Reliable Snap-On connection method
• Excellent VSWR of 1.22:1 • Small circuit footprint for high density applications
• Gold Plated Beryllium Copper Contact • Mechanical misalignment tolerance of 4.5°/0.7mm Max
• Blind Mate Connector
Applications
• General Purpose Test • Multi circuit board radios • Board to board applications
• Custom Cable Assemblies requiring multiple coaxial
• Low cost blind mate interconnect connections
.
Description
Pasternack’s PE45254 MMBX plug right angle snap-on connector crimp/solder attachment for RG178, RG196 is part of our
full line of RF components available for same-day shipping. Our MMBX plug connector operates up to a maximum frequency
of 3 GHz and offers excellent VSWR of 1.22:1. Its right angle body geometry allows for easier connections in tight spaces. The
Pasternack blind mate connector is ideal for applications where direct visual or tactile access to the connection point is not
possible, for example, when two circuit boards need to be mated.
Our MMBX plug right angle connector PE45254 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.22:1
Insertion Loss 0.31 dB
Operating Voltage (DC) 165 Vdc
Dielectric Withstanding Voltage (DC) 500 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Plug has a male center contact

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Right Angle Snap-On Connector Crimp/Solder Attachment for RG178, RG196,
with male center contact PE45254
