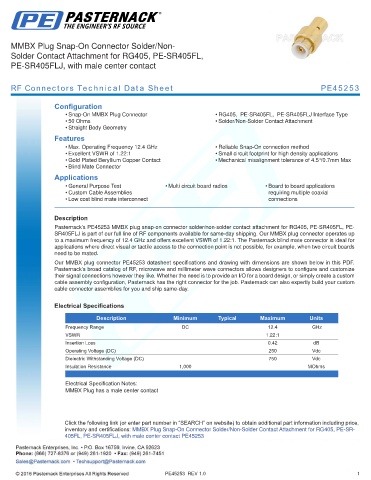

MMBX Plug Snap-On Connector Solder/Non-
Solder Contact Attachment for RG405, PE-SR405FL,
PE-SR405FLJ, with male center contact

RF Connectors Technical Data Sheet PE45253

Configuration
• Snap-On MMBX Plug Connector • RG405, PE-SR405FL, PE-SR405FLJ Interface Type
• 50 Ohms • Solder/Non-Solder Contact Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 12.4 GHz • Reliable Snap-On connection method
• Excellent VSWR of 1.22:1 • Small circuit footprint for high density applications
• Gold Plated Beryllium Copper Contact • Mechanical misalignment tolerance of 4.5°/0.7mm Max
• Blind Mate Connector
Applications
• General Purpose Test • Multi circuit board radios • Board to board applications
• Custom Cable Assemblies requiring multiple coaxial
• Low cost blind mate interconnect connections
.
Description
Pasternack’s PE45253 MMBX plug snap-on connector solder/non-solder contact attachment for RG405, PE-SR405FL, PE-
SR405FLJ is part of our full line of RF components available for same-day shipping. Our MMBX plug connector operates up
to a maximum frequency of 12.4 GHz and offers excellent VSWR of 1.22:1. The Pasternack blind mate connector is ideal for
applications where direct visual or tactile access to the connection point is not possible, for example, when two circuit boards
need to be mated.
Our MMBX plug connector PE45253 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.22:1
Insertion Loss 0.42 dB
Operating Voltage (DC) 250 Vdc
Dielectric Withstanding Voltage (DC) 750 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Plug has a male center contact

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Snap-On Connector Solder/Non-Solder Contact Attachment for RG405, PE-SR-
405FL, PE-SR405FLJ, with male center contact PE45253

PE45253 REV 1.0 1
