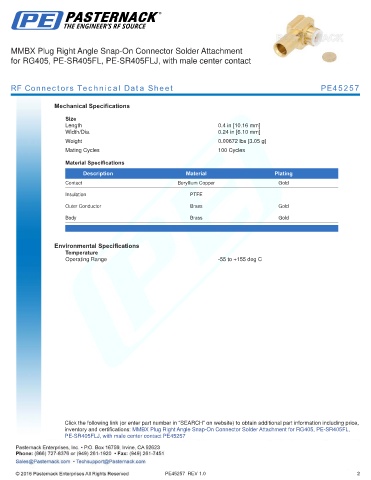

MMBX Plug Right Angle Snap-On Connector Solder Attachment
for RG405, PE-SR405FL, PE-SR405FLJ, with male center contact
RF Connectors Technical Data Sheet PE45257
Mechanical Specifications
Size
Length 0.4 in [10.16 mm]
Width/Dia. 0.24 in [6.10 mm]
.
Weight 0.00672 lbs [3.05 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE
Outer Conductor Brass Gold
Body Brass Gold
.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Plug Right Angle Snap-On Connector Solder Attachment for RG405, PE-SR405FL,
PE-SR405FLJ, with male center contact PE45257
PE45257 REV 1.0 2
